COMBINED CUTTING LINE

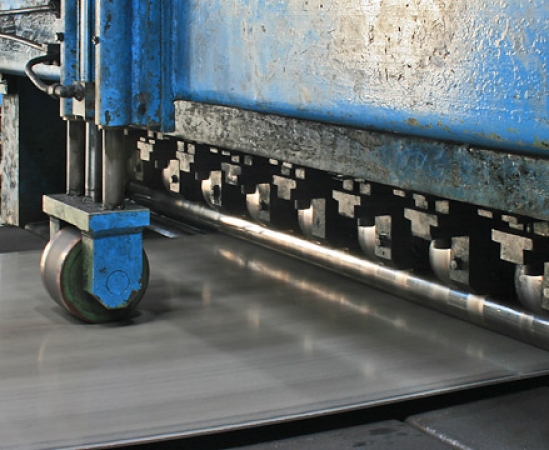

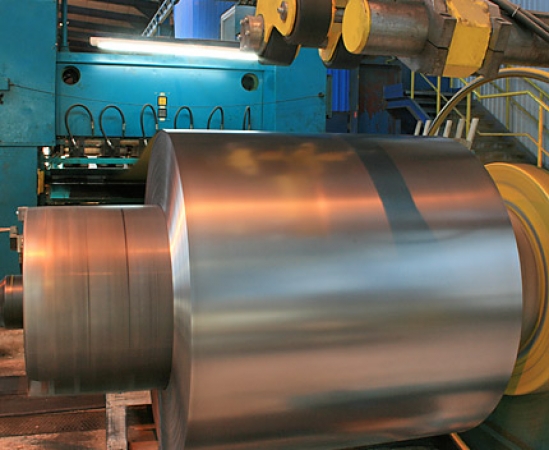

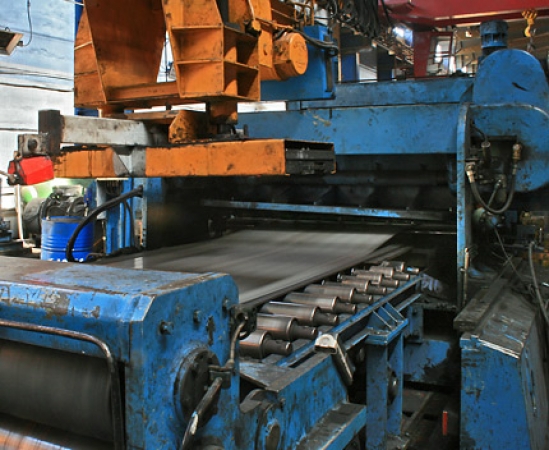

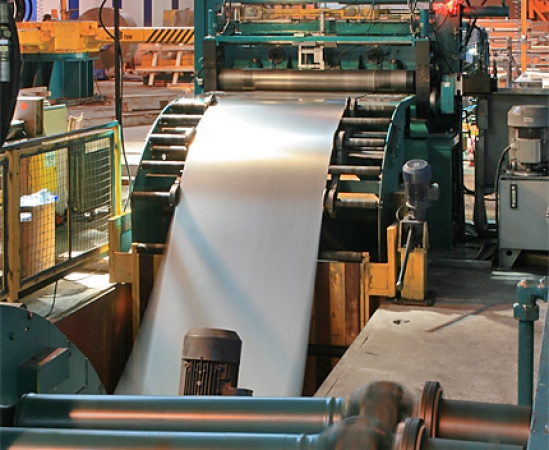

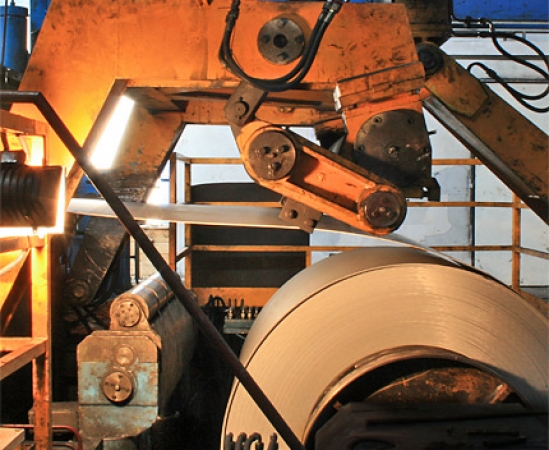

COMBINED LINE – CROSS – CUTTING

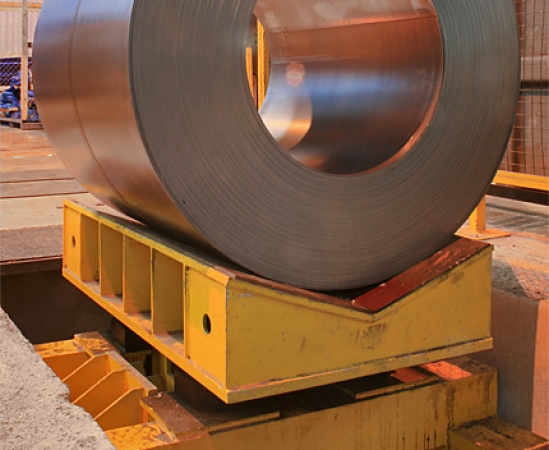

The combined line for cross-cutting is intended for cross-shearing of coiled rolled sheets into panels.
Technical parameters of the line
Input
| sheet thickness | 0,5 – 3 mm |
| coil width | 500 – 1500 mm |
| coil – inside diameter | 500 / 600 mm |
| coil – outside diameter | max. 1610 mm |
| coil – weight | max 15t |
Output
| sheet width | 500 – 1500 mm |
| sheet length | 1000 -4000 mm |
| Weight of sheet bundle | max. 4t |
| maximum bundle height | 240 mm |
| side trimming | is not |

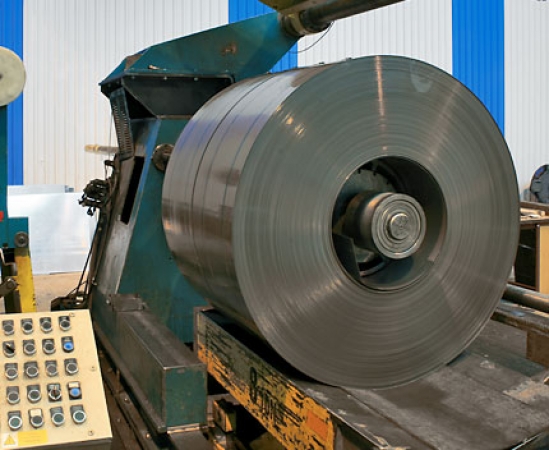

COMBINED LINE – LONGITUDINAL CUTTING

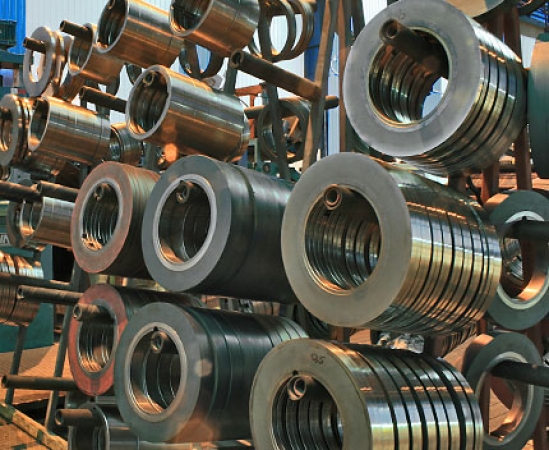

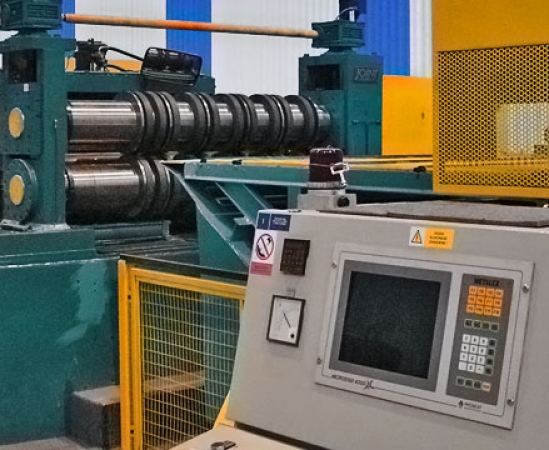

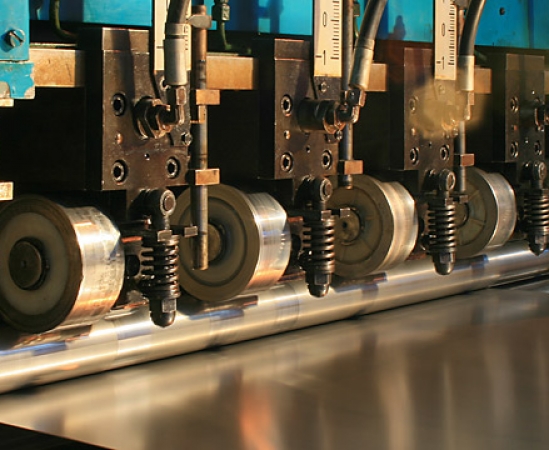

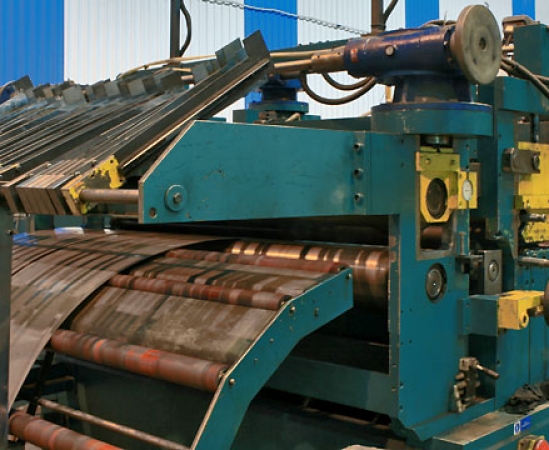

The longitudinal cutting line is intended for longitudinal shearing of coiled rolled sheet into rolls.
Technical parameters of the line
Input
| shit thickness | 0,5 – 3 mm |
| coil width | 300 – 1500 mm |
| coil – inside diameter | 508 / 610 mm |
| coil – outside diameter | max. 1610 mm |
| coil – weight | max 15 t |
Output: minimum band width - according to the thickness
| band width | 30 – 1500 mm |
| band – inside diameter | 508 mm |
| band – outside diameter | max. 1610 mm |
| weight | max . 8 t |
| weight of band rolls | 2,8 – 9,8 kg/mm width |

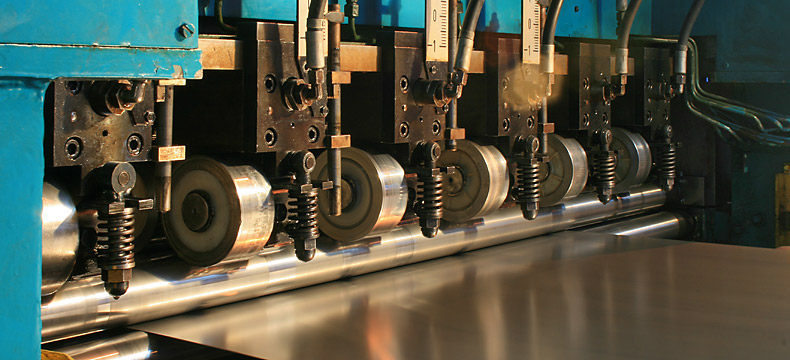

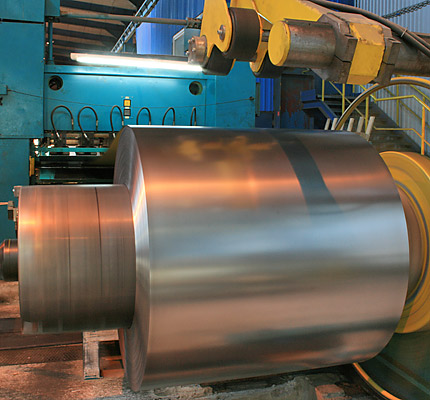

THIN CUTTING LINE – CROSS
The thin cross-cutting line is intended for cross-shearing of cold-rolled coiled sheet into panels.
Technical parameters of the line
Input
| sheet thickness | 0,5 – 2 mm |
| sheet width | 450 – 1500 mm |
| coil – inside diameter | 500 / 600 mm |
| coil – outside diameter | max. 1700 mm |
| coil – weight | max 15t |
Output
| sheet width | 450 – 1500 mm |
| sheet length | 450 – 3000 mm |
| Weight of sheet bundle | max. 4 t |
| maximum bundle height | 240 mm |
| side trimming | is not |

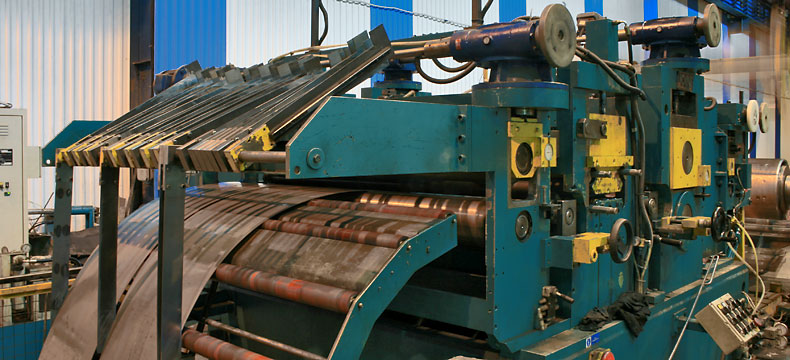

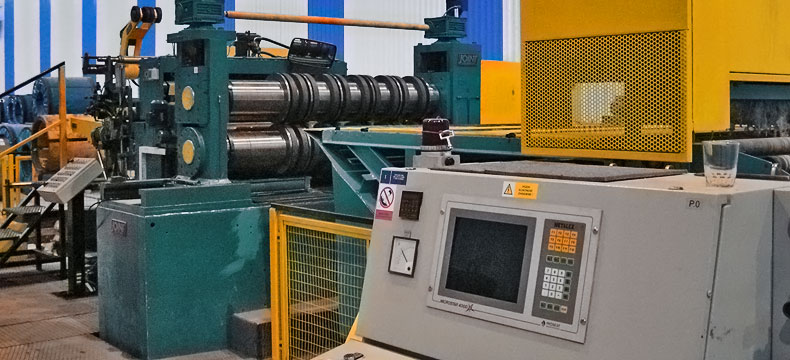

THIN CUTTING LINE – LONGITUDINAL

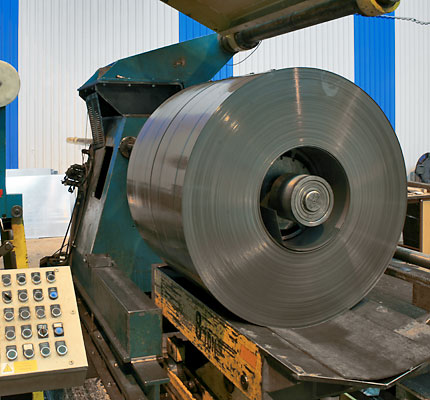

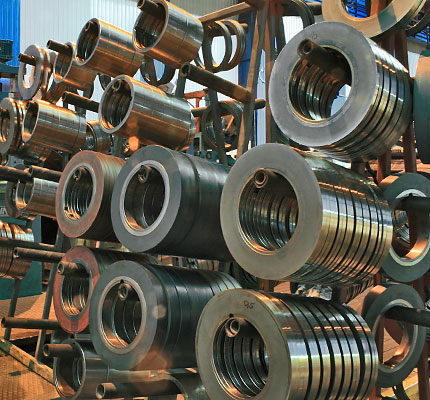

The thin longitudinal cutting line is intended for longitudinal shearing of cold-rolled coiled sheet into bands.
Technical parameters of the line
Input
| sheet thickness | 0,4 – 2 mm |
| sheet width | 300 – 1540 mm |
| coil – inside diameter | 500 / 600 mm |
| coil – outside diameter | max. 1170 mm |
| coil– weight | max 15 t |
Output: minimum band width - according to the thickness
| band width | 30 – 1500 mm |
| band – inside diameter | 500 / 600 mm |
| band – outside diameter | max. 1700 mm |
| weight | max . 15 t |
| weight of band rolls | 2,8 – 9,8 kg/mm width |

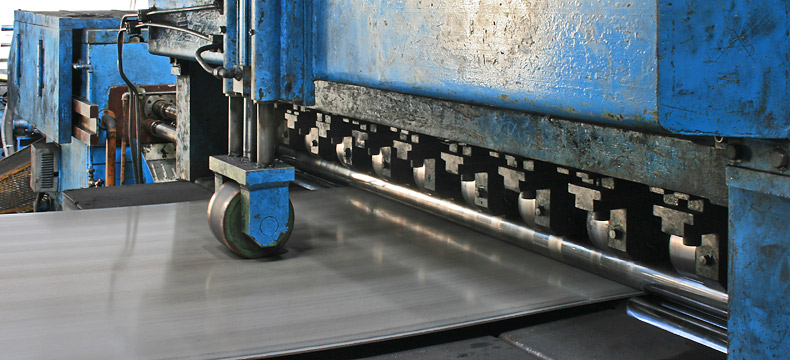

THICK CUTTING LINE – CROSS

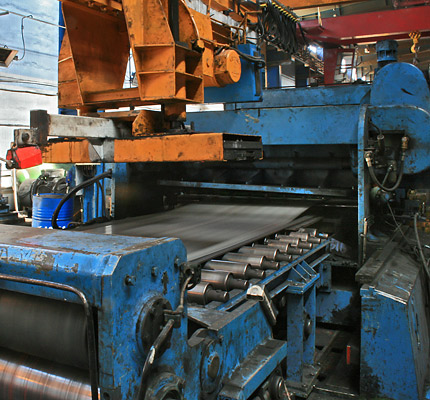

The thick cross-cutting line is intended for cross-shearing of hot-rolled coiled sheet into panels.
Technical parameters of the line
Input
| sheet thickness | 1,5 – 8 mm grade 11523 to 6 mm patterned sheet to 6 mm |
| coil width | 800 – 2000 mm |
| coil – inside diameter | 600 / 700 / 850 mm |
| coil – ouside diameter | max. 1850 mm |
| coil – weight | max. 22,5 t |
Output
| sheet width | 8000 – 2000 mm |
| sheet length | 850 – 9000 mm the agreement more |
| weight of sheet bundle | max. 5 t |
| side trimming | 15 – 40 mm but without trim |
THICK CUTTING LINE – LONGITUDINAL
The thick longitudinal cutting line is intended for longitudinal shearing of hot-rolled coiled sheet into bands.
Technical parameters of the line
Input
| sheet thickness | 1,5 – 4 mm grade from 11 375 to 5 mm |
| coil width | 650 – 1500 mm |
| coil – inside diameter | 500 / 600 / 700 / 850 mm |
| coil – outside diameter | max. 1850 mm |
| coil – weight | max. 20 t |
| maximum strength | 500 MPa |
| maximum stretch | 400 MPa |
Output
| band width | 60 – 1500 mm |
| band – inside diameter | 500 / 600 mm |
| band – outside diameter | max. 1850 mm |
| weight of band | max. 20 t |
| weight in millimeters | 5,0 – 12,0 kg/mm width |
